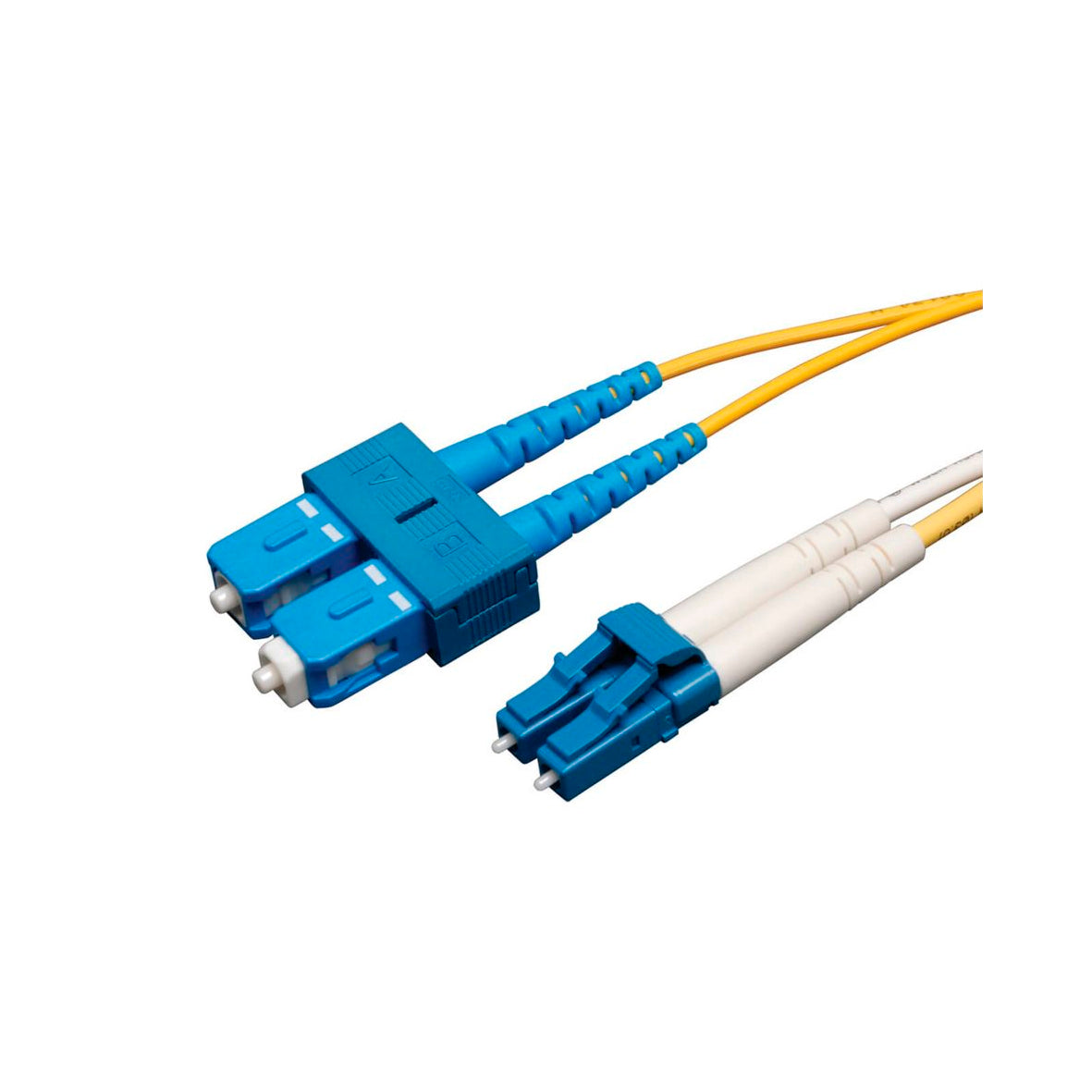

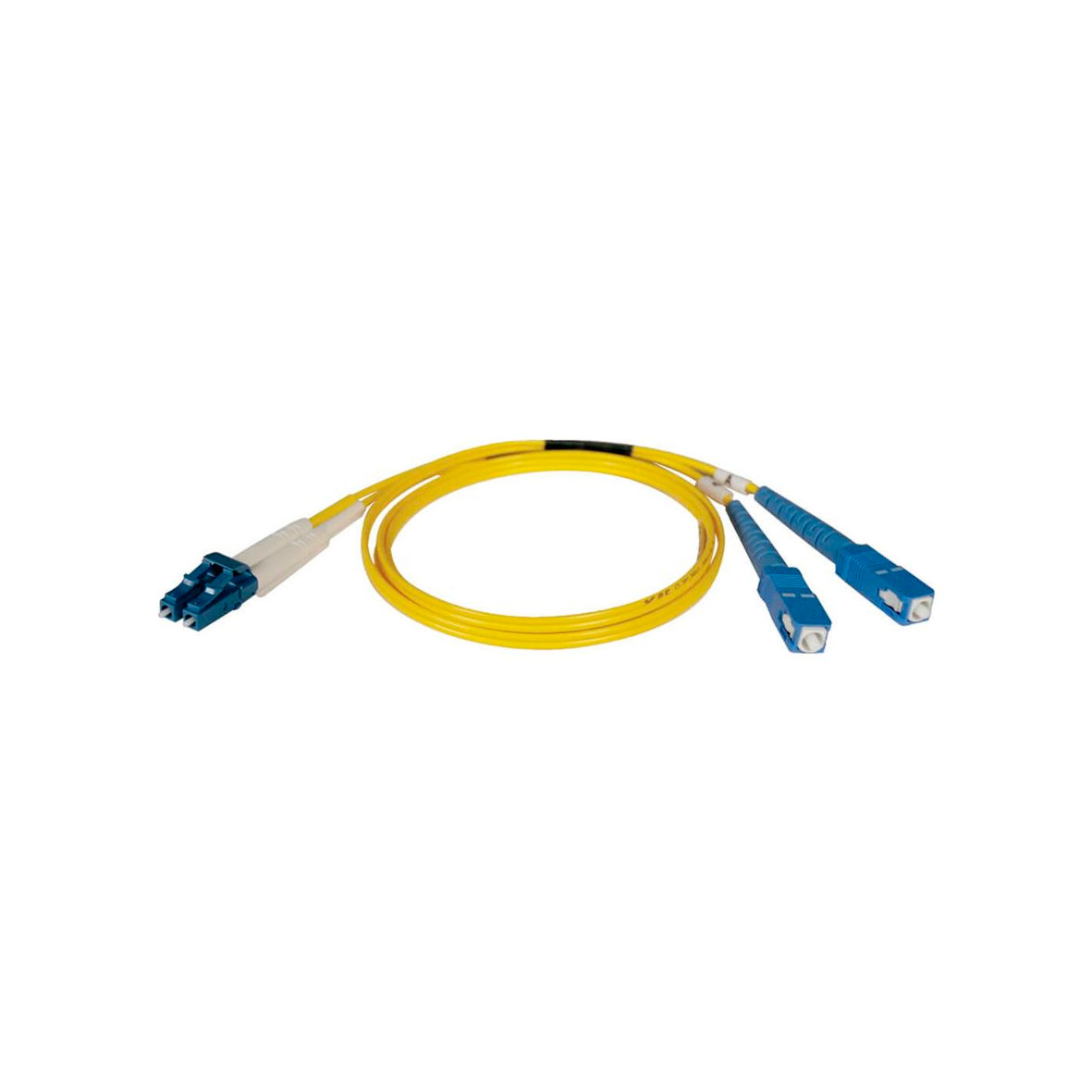

Tripp Lite - Duplex Singlemode 8.3/125 Fiber Patch Cable 2m

Tripp Lite - Duplex Singlemode 8.3/125 Fiber Patch Cable 2m

£24.00
£24.00
Click & Collect
FREE collection in store in just 10 minutes.

Description

  • Duplex OS2 singlemode fibre optic patch cable for long-distance, high-bandwidth networking.
  • LC duplex male to SC duplex male connectors with UPC polished end faces.
  • Supports network speeds from 1 Gbps up to 400 Gbps.
  • 9/125 µm singlemode fibre provides greater bandwidth and longer transmission distances than multimode fibre.
  • Low insertion loss of ≤0.30 dB ensures reliable signal performance.
  • Premium LSZH cable jacket helps reduce smoke and hazardous emissions in enclosed installations.
  • Yellow cable jacket allows quick identification of singlemode fibre installations.
  • Designed for professional networking, telecommunications and data centre applications.
  • Cable length: 2 metres.
  • Fibre type: OS2 Singlemode 9/125 µm.
  • Core/Cladding diameter: 9/125 µm.
  • Connectors: LC Duplex Male to SC Duplex Male.
  • End-face polish: UPC.
  • Insertion loss: ≤0.30 dB.
  • Attenuation: 0.36 dB/km @ 1310 nm; 0.22 dB/km @ 1550 nm.
  • Network compatibility: 1, 10, 25, 40, 100 and 400 Gigabit Ethernet.
  • Cable jacket: LSZH (Low Smoke Zero Halogen), yellow.
  • Minimum bend radius: 20 mm (dynamic), 10 mm (static).
  • Operating temperature: -20°C to 60°C.
  • Operating humidity: 5%–85% RH, non-condensing.
  • Handle fibre optic cables carefully and avoid exceeding the minimum bend radius.
  • Keep connector end faces clean and protected with dust caps when not in use.
  • Designed for indoor networking installations.
